This is because many architect grinds are created with a single flat angle in order to maximize the variation of the nib. At Kyuseido, our default architect nib is a curved architect that allows the user to write fluidly and naturally even when their hand holds the pen at different angles. It is designed to accommodate most writing grips and angles, and therefore an easy way to get into architect nibs. As a result, the maximum variation angle is usually lower than architect nibs from other grinders and studios.

Architect nibs are excellent for block print. The reason is because the sharp and bold lines create crisp outlines that make the letters on the page very easy to read, while also creating a distinctive visual style. However, architect nibs are not exclusive to such writing. As described in the introduction, architect nibs can be used for a variety of different scripts. By controlling the pressure and contact surface of the nib, architect nibs can create letters similar to those made with ruling pens. Many people enjoy using architect nibs in such a way to create ruling pen calligraphy on the go or to discover new unconventional letter forms.

Similar to stub nibs, line variation is an inverse function of smoothness. Inherently, the distance between the tines is smaller because the tipping needs to be in such a shape that the tipping is longer but slimmer. As a result, architect nibs have a natural feedback that is distinct from other nibs. While it is possible to smooth out an architect nib, line variation will need to be sacrificed.

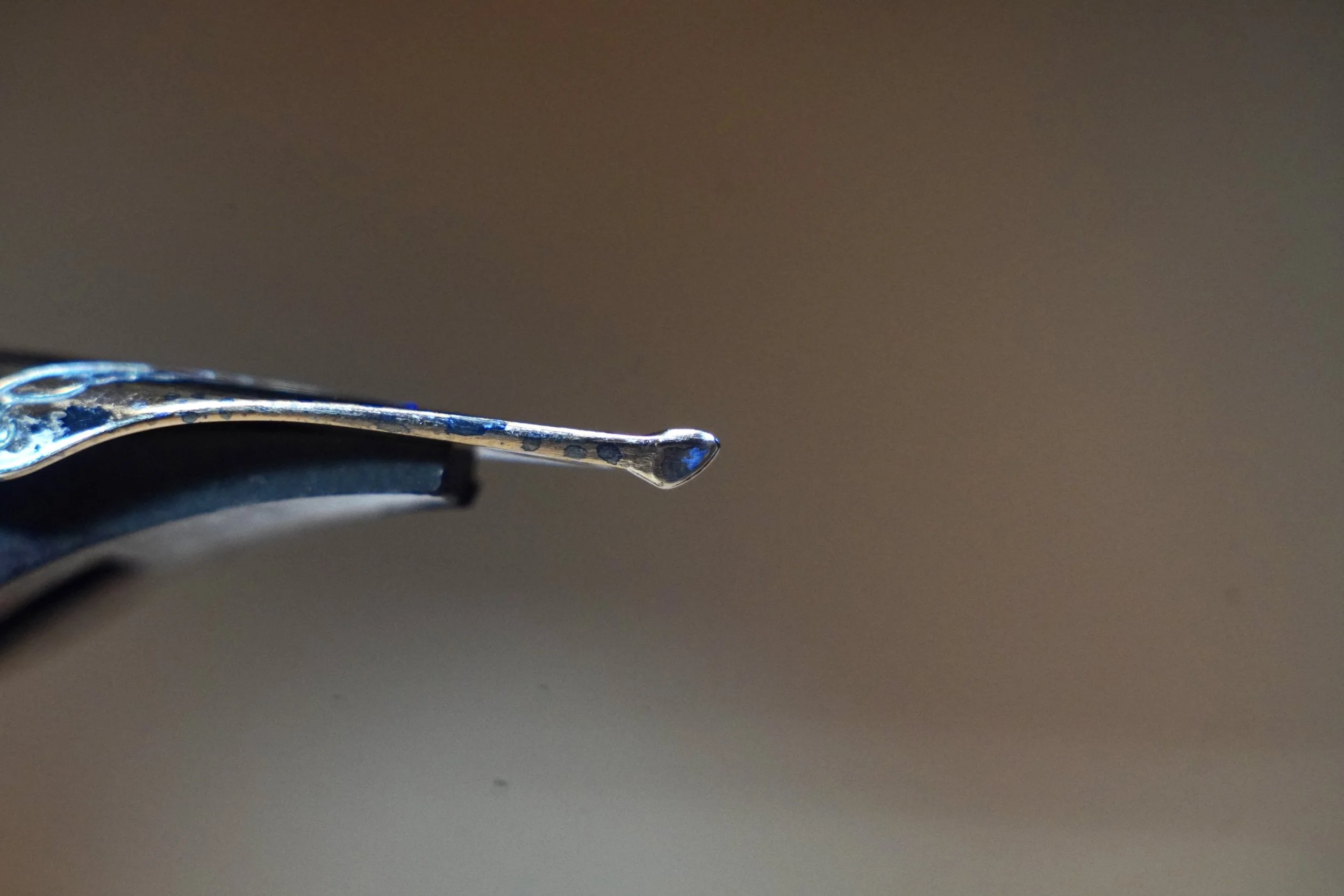

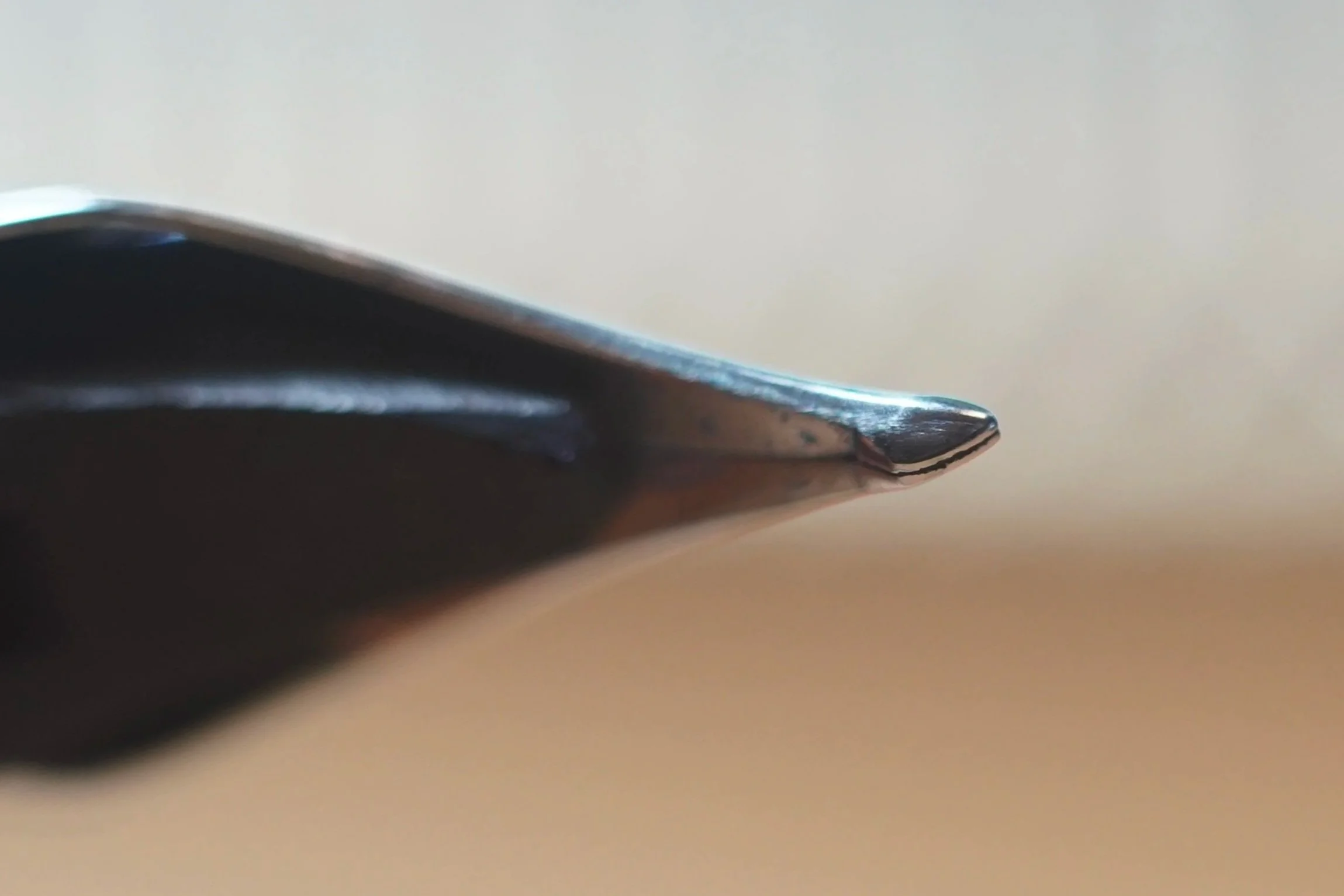

At Kyuseido, we grind the nib with a roughly 45-60 degree slant, curving the writing plane of the nib so that variation in nib angle still results in pleasant writing for the user. Similar to our Naginata-Togi nib, higher writing angles will yield a thinner line, whereas lower angles will provide maximum variation. Once the writing plane has been cut, we bring in the sides of the nib to shape the tipping to be as sharp as possible at the tip. Note that while every grinding studio will do things differently, we like to start grinding from the wing of the nib in order to maintain the aesthetic balance of the nib itself. This means that plated nibs will have the sides of the nib ground, thus showing the base material underneath. Once we have the sides of the nibs cut to the correct shape and proportion, we grind the top of the tipping to be flat. We also add a diagonal cut on both sides of the nib and tipping to complete the nib, which gives the nib what we consider the optimal flow of ink to tipping to paper.

Of course, we can also do a traditional straight architect on custom request, but such nibs will be much more angle dependent than our standard architect nibs.
